Measured Building Survey: 2D CAD Drawings

Our measured building surveys capture millions of measured points on site, then produce precise 2D drawings in AutoCAD. Every wall, window, door, beam, column, and key architectural element is documented with positional and dimensional accuracy.

At a Glance

Deliverable

AutoCAD DWG drawings, with PDF copies for easy review

Scan accuracy

Deviation under 6 mm at 10 m range

Turnaround

5–10 working days from site visit

Coverage

London & Greater London

Real Examples from Our Projects

Real drawings we have produced from laser scan surveys. Click any drawing to view it full size.

Elevation

Front Elevation

External elevation with every moulding, balustrade and opening drawn to scale.

Floor Plan

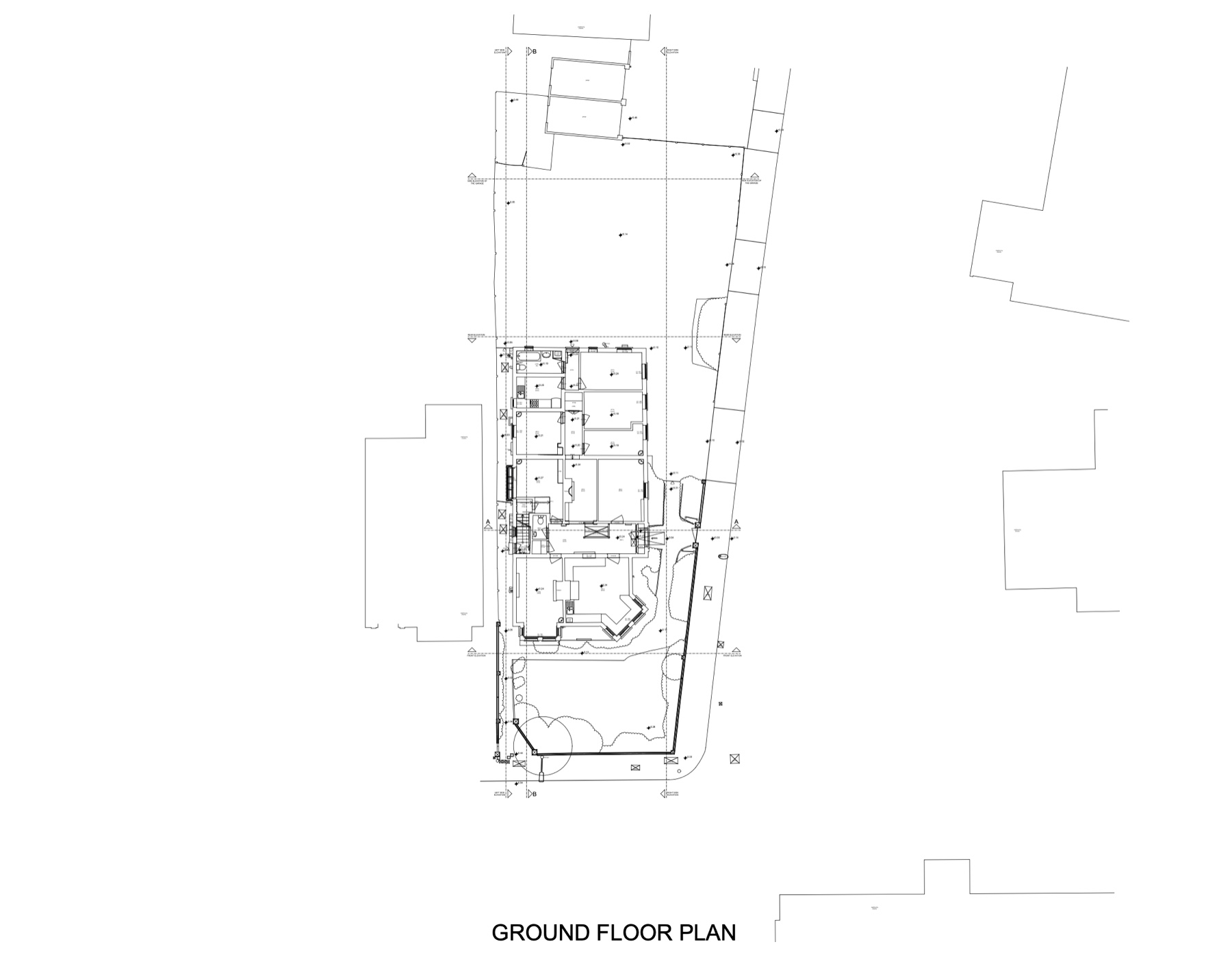

Ground Floor Plan

Fully dimensioned floor plan with room layouts, walls and site boundary.

Section

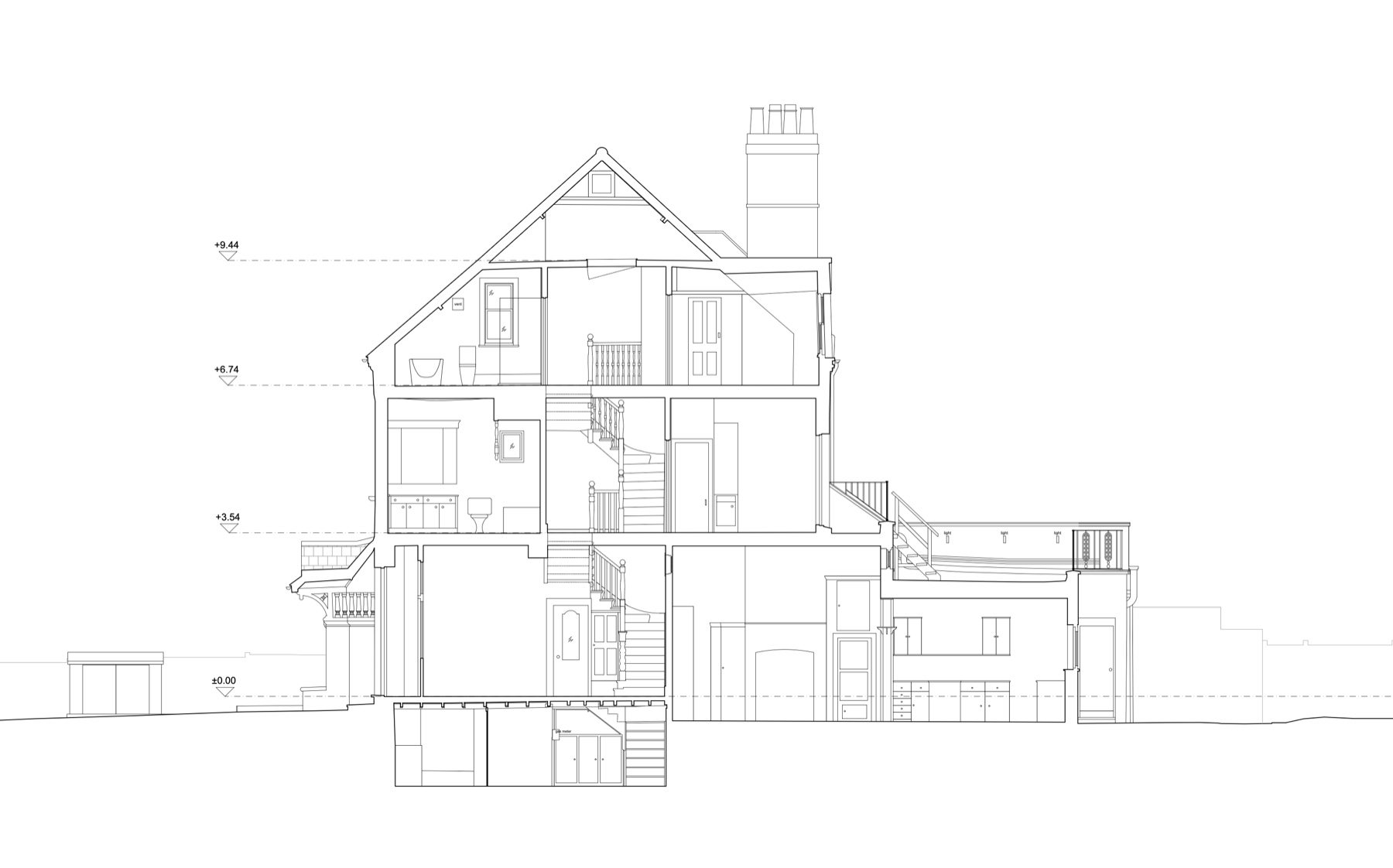

Cross Section

Vertical section through the building showing floor levels and heights.

Deliverables

Property Types We Survey

• Houses, flats, and apartments
• Offices and commercial buildings
• Shops, restaurants, and leisure facilities
• Schools, colleges, and universities
• Healthcare buildings and hospitals
• Heritage and listed buildings
• Industrial buildings and warehouses

Level of Detail

Tailored to your project, from basic structural layouts to comprehensive surveys capturing sanitary ware, electrical points, fire alarms, radiators, and all visible services.

Prefer to draw it yourself?

If your team would rather produce the drawings in-house, our point cloud delivery service gives you the same measured data at a lower cost: you trace and draft directly in your own software.
